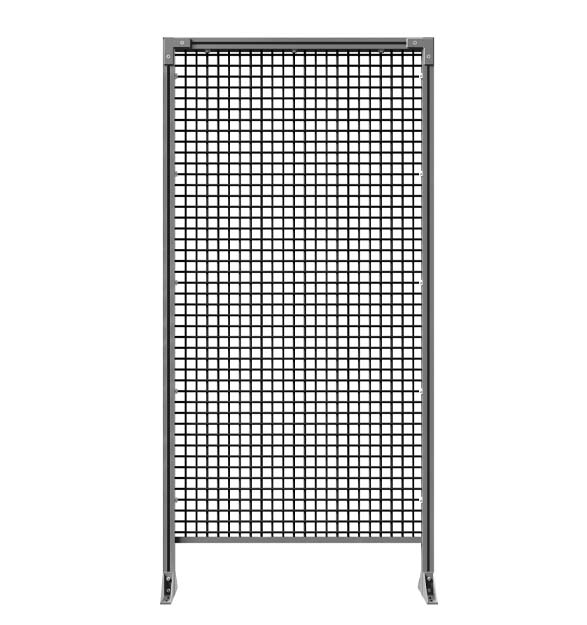

Combi-Line with welded wire mesh

2.00 kr

Clear

Product information

All typs are incl. required floorbrackets

Colour
Optional
Dimensions profil
44 x 44 mm
Material
Aluminium
Requirments
EN ISO 14120:2015
Standard
Machinery Directive 2006/42/EG

Description

Create and build your own Safety Section using our Combi-Line fence with welded wire mesh. Choose between different options for fence sections and customize the safety fence according to your needs. Select different fields, materials and sizes and create safety sections on your own.

Read more

Create and build your own Safety Section using our Combi-Line fence with welded wire mesh. Choose between different options for fence sections and customize the safety fence according to your needs. Select different fields, materials and sizes and create safety sections on your own.

The fence systems allows a modular system for various applications like machines, robots and plants. The Safety Fence system is compatible with Jokab Safety/ABB Quick- Guard fencing system and it is constructed in the same design.

A big supply of fillings, contours and colors are available – the fence can be adjusted to all customers needs. If the requirements change over time, an easy retrofit during a reconstruction is not a problem with our system. Regardless of whether new systems, modifications or retrofits – the safety fence from SSP meets all requirements of the EN ISO 14120:2015 as well as the latest Machinery Directive 2006/42/EG.

Documents

Models

Article numberTyp/DescriptionSize
SP-X-45-091-01COMBI-LINE standard field, filling welded wire mesh, black 2 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, 1144 mm width
SP-X-45-091-02COMBI-LINE standard field, filling welded wire mesh, black 2 × post 44 × 44 mm, incl. all required floorbrackets2200mm height, 1144 mm width
SP-X-45-091-05COMBI-LINE standard field, filling welded wire mesh, black 2 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, 1544 mm width
SP-X-45-091-06COMBI-LINE standard field, filling welded wire mesh, black 2 × post 44 × 44 mm, incl. all required floorbrackets2200 mm height, 1544 mm width
SP-X-45-091-11COMBI-LINE extension field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, 1100 mm width
SP-X-45-091-12COMBI-LINE extension field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2200 mm height, 1100 mm width
SP-X-45-091-15COMBI-LINE extension field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, 1500 mm width
SP-X-45-091-16COMBI-LINE extension field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2200 mm height, 1500 mm width
SP-X-45-091-21COMBI-LINE compensation field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets * Compensation fields are not pre-assembled2000 mm height, up to 500 mm width
SP-X-45-091-22COMBI-LINE compensation field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets * Compensation fields are not pre-assembled2200 mm height, up to 500 mm width
SP-X-45-091-25COMBI-LINE compensation field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets * Compensation fields are not pre-assembled2000 mm height, up to 1100 mm width
SP-X-45-091-26COMBI-LINE compensation field, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets * Compensation fields are not pre-assembled2200 mm height, up to 1100 mm width
SP-X-45-091-31Hinged door type COMBI-LINE, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, up to 1000 mm clear width
SP-X-45-091-32 Hinged door type COMBI-LINE, filling welded wire mesh 1 × post 44 × 44 mm, incl. all required floorbrackets2200 mm height, up to 1000 mm clear width
SP-X-45-091-41Sliding door and COMBI-LINE standard field, filling welded wire mesh 2 × post 44 × 44 mm, incl. all required floorbrackets2000 mm height, up to 1000 mm clear width
SP-X-45-091-42Sliding door and COMBI-LINE standard field, filling welded wire mesh 2 × post 44 × 44 mm, incl. all required floorbrackets2200 mm height, up to 1000 mm clear width
