ZEUS 120 Function control including diagnostics

2.00 kr

Clear

Product information

Protection class
IP65 and IP67
Approvals
Tüv, CE
Supply voltage
DC +/- 5% 24 V

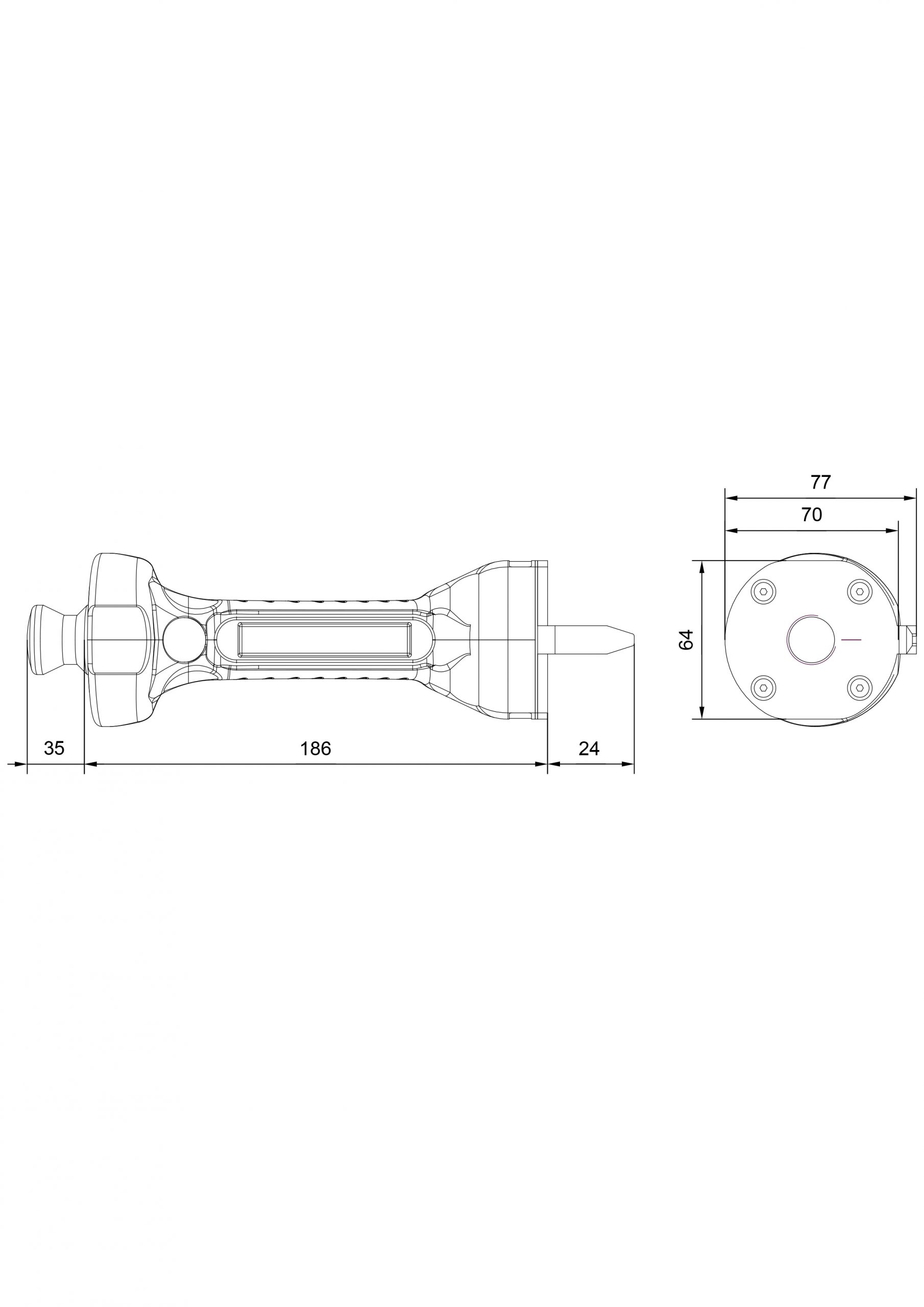

Dimensions
186 x 70mm

Description

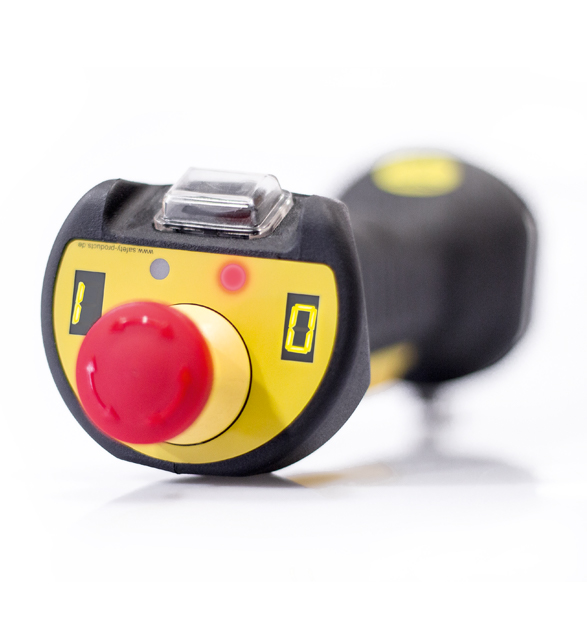

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

This model functions:

  • Extended LED diagnosis
  • Operation of up to 120 axes/functions
  • Rocker/function button
  • Emergency stop
  • Sensor functions choice by non, activity sensor or in-hand- and activity sensor
  • Baseplate with or without bracket
  • Different type of wiring
  • Button on front
Read more

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

This model functions:

  • Extended LED diagnosis
  • Operation of up to 120 axes/functions
  • Rocker/function button
  • Emergency stop
  • Sensor functions choice by non, activity sensor or in-hand- and activity sensor
  • Baseplate with or without bracket
  • Different type of wiring
  • Button on front

Documents

Technical Data

Approvals
TÜV, CE
Supply voltage
24V DC ± 5% V
Standards
EMV: DIN EN 55011:2009 + A1:2010, DIN EN 61000-4-3:2006 + A1:2008 + A2:2010, DIN EN 61000-4-6:2009
B10d-value
100.000
Environmental conditions
Max. storage temperature
-40... +80 °C
Max. operating temperature
-5 ...+60 °C
Protection class
IP65, IP67
Clearance and creepage distances according to IEC/EN 606641
Overvoltage category: 3 // Contamination level: III
Enabling button material
Silicon
Base plate
with mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread
Length
71 mm
Width
69 mm
Height
186 mm
Weight
depending on features and variant 330-400 g
Housing material
PA6.6 30% GF, colour: black
Material for base plate
V2A
Mechanical service life
100,000 switching cycles
Screw torque
0,8 Nm

Models

Model Sensor functionConnectionBaseplate
ZEUS 11-15 00 02NonTerminal connectionWithout mounting bracket
ZEUS 11-15 0C 02NonM23 plug 12-pinWithout mounting bracket
ZEUS 11-15 04 02NonConnecting cable 5mWithout mounting bracket
ZEUS 11-15 05 02NonConnecting cable 10mWithout mounting bracket
ZEUS 11-15 10 02NonTerminal connectionWith mounting bracket
ZEUS 11-15 1C 02NonM23 plug 12-pinWith mounting bracket
ZEUS 11-15 14 02NonConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 02NonConnecting cable 10mWith mounting bracket
ZEUS 11-15 10 12Activity-SensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 12Activity-SensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 12Activity-SensorConnecting cable 10mWith mounting bracket
ZEUS 11-15 00 22In-hand sensorTerminal connectionWithout mounting bracket
ZEUS 11-15 04 22In-hand sensorConnecting cable 5mWithout mounting bracket
ZEUS 11-15 05 22In-hand sensorConnecting cable 10mWithout mounting bracket
ZEUS 11-15 10 22In-hand sensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 22In-hand sensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 22In-hand sensorConnecting cable 10mWith mounting bracket
ZEUS 11-15 10 32In-hand and activity sensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 32In-hand and activity sensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 32In-hand and activity sensorConnecting cable 10mWith mounting bracket
