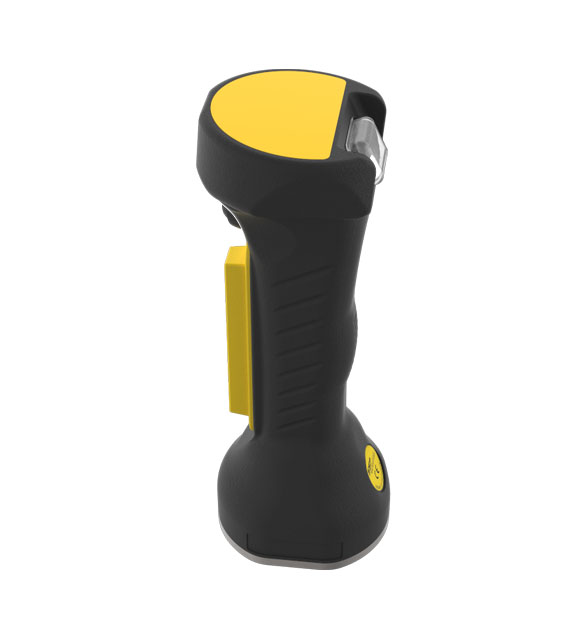

ZEUS with button on front and Rocker switch

2.00 kr

Clear

Product information

Protection class
IP65 and IP67
Approvals
Tüv, CE
Supply voltage
DC +/- 5% 24 V

Description

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Read more

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Documents

Technical Data

Approvals
TÜV, CE
Supply voltage
24V DC ± 5% V
Standards
EMV: DIN EN 55011:2009 + A1:2010, DIN EN 61000-4-3:2006 + A1:2008 + A2:2010, DIN EN 61000-4-6:2009
B10d-value
100.000
Environmental conditions
Max. storage temperature
-40... +80 °C
Max. operating temperature
-5 ...+60 °C
Protection class
IP65, IP67
Clearance and creepage distances according to IEC/EN 606641
Overvoltage category: 3 // Contamination level: III
Enabling button material
Silicon
Base plate
with mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread
Length
71 mm
Width
69 mm
Height
186 mm
Weight
depending on features and variant 330-400 g
Housing material
PA6.6 30% GF, colour: black
Material for base plate
V2A
Mechanical service life
100,000 switching cycles
Screw torque
0,8 Nm

Models

Model Article numberSensor functionConnectionBaseplate
ZEUS 01-05 00 00SP-X-85-903-27 NonTerminal connectionWithout mounting bracket
ZEUS 01-05 08 00By requestNonM12 plug 5-pinWithout mounting bracket
ZEUS 01-05 09 00By requestNonM23 plug 12-pinWithout mounting bracket
ZEUS 01-05 01 00By requestNonSpiral cable 0,5m/2,5mWithout mounting bracket
ZEUS 01-05 02 00By requestNonSpiral cable 1m/5mWithout mounting bracket
ZEUS 01-05 04 00SP-X-85-903-93 NonConnecting cable 5mWithout mounting bracket
ZEUS 01-05 05 00By requestNonConnecting cable 10mWithout mounting bracket
ZEUS 01-05 10 00SP-X-85-901-75 NonTerminal connectionWith mounting bracket
ZEUS 01-05 18 00By requestNonM12 plug 5-pinWith mounting bracket
ZEUS 01-05 19 00By requestNonM23 plug 12-pinWith mounting bracket
ZEUS 01-05 11 00By requestNonSpiral cable 0,5m/2,5mWith mounting bracket
ZEUS 01-04 12 00SP-X-85-905-87 NonSpiral cable 1m/5mWith mounting bracket
ZEUS 01-05 14 00SP-X-85-905-75 NonConnecting cable 5mWith mounting bracket
ZEUS 01-05 15 00SP-X-85-901-76 NonConnecting cable 10mWith mounting bracket
ZEUS 01-05 10 10SP-X-85-903-16 Activity-SensorTerminal connectionWith mounting bracket
ZEUS 01-05 18 10SP-X-85-901-74 Activity-SensorM12 plug 5-pinWith mounting bracket
ZEUS 01-05 19 10By requestActivity-SensorM23 plug 12-pinWith mounting bracket
ZEUS 01-05 11 10By requestActivity-SensorSpiral cable 0,5m/2,5mWith mounting bracket
ZEUS 01-05 12 10By requestActivity-SensorSpiral cable 1m/5mWith mounting bracket
ZEUS 01-05 14 10By requestActivity-SensorConnecting cable 5mWith mounting bracket
ZEUS 01-05 15 10By requestActivity-SensorConnecting cable 10mWith mounting bracket
ZEUS 01-05 00 20By requestIn-hand sensorTerminal connectionWithout mounting bracket
ZEUS 01-05 08 20By requestIn-hand sensorM12 plug 5-pinWithout mounting bracket
ZEUS 01-05 09 20By requestIn-hand sensorM23 plug 12-pinWithout mounting bracket
ZEUS 01-05 01 20By requestIn-hand sensorSpiral cable 0,5m/2,5mWithout mounting bracket
ZEUS 01-05 02 20By requestIn-hand sensorSpiral cable 1m/5mWithout mounting bracket
ZEUS 01-05 04 20By requestIn-hand sensorConnecting cable 5mWithout mounting bracket
ZEUS 01-05 05 20By requestIn-hand sensorConnecting cable 10mWithout mounting bracket
ZEUS 01-05 10 20By requestIn-hand sensorTerminal connectionWith mounting bracket
ZEUS 01-05 18 20By requestIn-hand sensorM12 plug 5-pinWith mounting bracket
ZEUS 01-05 19 20By requestIn-hand sensorM23 plug 12-pinWith mounting bracket
ZEUS 01-05 11 20By requestIn-hand sensorSpiral cable 0,5m/2,5mWith mounting bracket
ZEUS 01-05 12 20By requestIn-hand sensorSpiral cable 1m/5mWith mounting bracket
ZEUS 01-05 14 20By requestIn-hand sensorConnecting cable 5mWith mounting bracket
ZEUS 01-05 15 20By requestIn-hand sensorConnecting cable 10mWith mounting bracket
ZEUS 01-05 10 30By requestIn-hand and activity sensorTerminal connectionWith mounting bracket
ZEUS 01-05 18 30By requestIn-hand and activity sensorM12 plug 5-pinWith mounting bracket
ZEUS 01-05 19 30By requestIn-hand and activity sensorM23 plug 8-pinWith mounting bracket
ZEUS 01-05 11 30By requestIn-hand and activity sensorSpiral cable 0,5m/2,5mWith mounting bracket
ZEUS 01-05 12 30By requestIn-hand and activity sensorSpiral cable 1m/5mWith mounting bracket
ZEUS 01-05 14 30By requestIn-hand and activity sensorConnecting cable 5mWith mounting bracket
ZEUS 01-05 15 30SP-X-85-901-77 In-hand and activity sensorConnecting cable 10mWith mounting bracket
