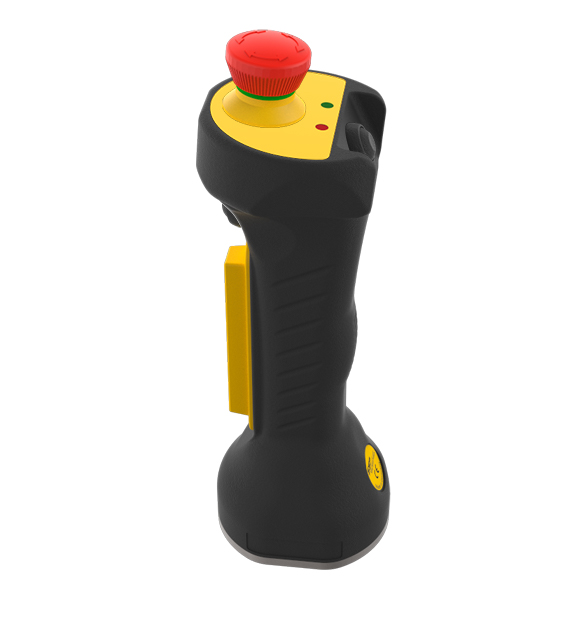

ZEUS LED, with buttons and E-stop

2.00 kr

Clear

Product information

Protection class
IP65 and IP67
Approvals
Tüv, CE
Supply voltage
DC +/- 5% 24 V

Description

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Read more

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Documents

Technical Data

Approvals
TÜV, CE
Supply voltage
24V DC ± 5% V
Standards
EMV: DIN EN 55011:2009 + A1:2010, DIN EN 61000-4-3:2006 + A1:2008 + A2:2010, DIN EN 61000-4-6:2009
B10d-value
100.000
Environmental conditions
Max. storage temperature
-40... +80 °C
Max. operating temperature
-5 ...+60 °C
Protection class
IP65, IP67
Clearance and creepage distances according to IEC/EN 606641
Overvoltage category: 3 // Contamination level: III
Enabling button material
Silicon
Base plate
with mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread
Length
71 mm
Width
69 mm
Height
186 mm
Weight
depending on features and variant 330-400 g
Housing material
PA6.6 30% GF, colour: black
Material for base plate
V2A
Mechanical service life
100,000 switching cycles
Screw torque
0,8 Nm

Models

Model Article numberSensor functionConnectionBaseplate
ZEUS 11-13 00 00SP-X-85-904-40 NonTerminal connectionWithout mounting bracket
ZEUS 11-13 0C 00By requestNonM23 plug 12-pinWithout mounting bracket
ZEUS 11-13 04 00SP-X-85-905-66 NonConnecting cable 5mWithout mounting bracket
ZEUS 11-13 05 00SP-X-85-905-99 NonConnecting cable 10mWithout mounting bracket
ZEUS 11-13 10 00SP-X-85-905-38 NonTerminal connectionWith mounting bracket
ZEUS 11-13 1C 00SP-X-85-904-98 NonM23 plug 12-pinWith mounting bracket
ZEUS 11-13 14 00SP-X-85-900-65 NonConnecting cable 5mWith mounting bracket
ZEUS 11-13 15 00SP-X-85-901-15 NonConnecting cable 10mWith mounting bracket
ZEUS 11-13 10 10By requestActivity-SensorTerminal connectionWith mounting bracket
ZEUS 11-13 1C 10By requestActivity-SensorM23 plug 12-pinWith mounting bracket
ZEUS 11-13 14 10SP-X-85-900-68 Activity-SensorConnecting cable 5mWith mounting bracket
ZEUS 11-13 15 10SP-X-85-900-96 Activity-SensorConnecting cable 10mWith mounting bracket
ZEUS 11-13 00 20By requestIn-hand sensorTerminal connectionWithout mounting bracket
ZEUS 11-13 0C 20SP-X-85-903-82 In-hand sensorM23 plug 12-pinWithout mounting bracket
ZEUS 11-13 04 20By requestIn-hand sensorConnecting cable 5mWithout mounting bracket
ZEUS 11-13 05 20By requestIn-hand sensorConnecting cable 10mWithout mounting bracket
ZEUS 11-13 10 20By requestIn-hand sensorTerminal connectionWith mounting bracket
ZEUS 11-13 1C 20SP-X-85-903-46 In-hand sensorM23 plug 12-pinWith mounting bracket
ZEUS 11-13 14 20SP-X-85-902-38 In-hand sensorConnecting cable 5mWith mounting bracket
ZEUS 11-13 15 20By requestIn-hand sensorConnecting cable 10mWith mounting bracket
ZEUS 11-13 10 30SP-X-85-902-35 In-hand and activity sensorTerminal connectionWith mounting bracket
ZEUS 11-13 1C 30SP-X-85-904-41 In-hand and activity sensorM23 plug 12-pinWith mounting bracket
ZEUS 11-13 14 30SP-X-85-900-06 In-hand and activity sensorConnecting cable 5mWith mounting bracket
ZEUS 11-13 15 30SP-X-85-901-78 In-hand and activity sensorConnecting cable 10mWith mounting bracket
