Holdx RL

2.00 kr

Clear

Product information

Locking force
1200 N
Safety level
Ple, Cat. 4, SIL3
Protection class
IP67

Description

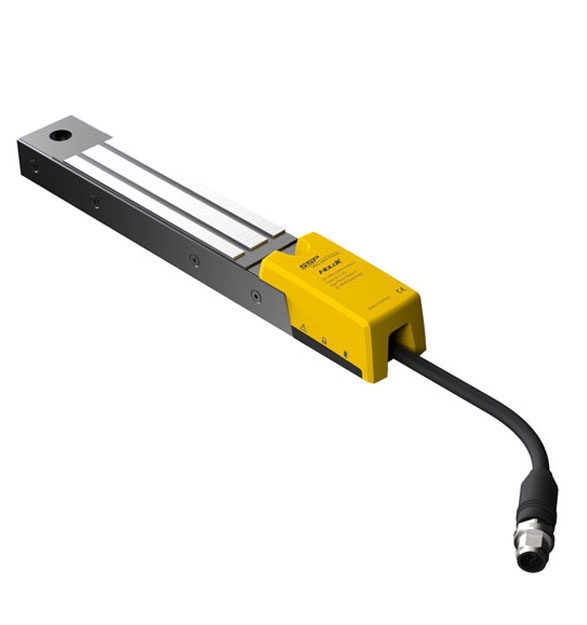

Process locking device with safety sensor Holdx RL Holdx RL is developed for large doors.

With an electrical locking force of 1200 N, the HOLDX RL prevents people from opening the door in the middle of a process. Holdx RL also has a slim width of only 35 mm, ideal for space-saving installation on aluminum profile systems. Like the smaller HOLDX RS, the guard locking has an option of a permanent magnet of 50 N, which can hold the door when the electrical magnet is off.

Read more

Process locking device with safety sensor Holdx RL Holdx RL is developed for large doors.

With an electrical locking force of 1200 N, the HOLDX RL prevents people from opening the door in the middle of a process. Holdx RL also has a slim width of only 35 mm, ideal for space-saving installation on aluminum profile systems. Like the smaller HOLDX RS, the guard locking has an option of a permanent magnet of 50 N, which can hold the door when the electrical magnet is off.

Holdx RS and RL

The electrical magnet on Holdx as no resting magnetism when deenergized. This prevents magnetic material from getting stuck on the surface.

Holdx has an RFID safety sensor which gives a safe stop signal when the door is opened. The safety sensor fulfills PLe cat 4 and SIL 3. The safety sensor is available in two versions (standard and individual coded).

Standard coding: All sensors has the same code.

Inviduell coding: Each sensor has a unique code together with the actuator. This means that the sensor cannot be activated with another actuator. You can however always teach the sensor to a new actuator. But then it only works together with the new one.

Holdx is used to:

  • Prevent stops in the middle of a process
  • keep unauthorized people outside the production area
  • give safe stops to machines when opening of door is permitted = magnet deenergized
  • be sure that the door can be opened in case of energy loss = magnet deenergized

Holdx and Safety Simplifer:

The Safety Simplifier has M12-contacts for one or two Holdx and Push Buttons for reset, lock, and unlock the door. Safety Simplifier asks the machinery system whether the door is allowed to be opened or not. If open is ok the Simplifier deenergized the door when the process inside has been halted and when door is opened it gives a safe stop to the machinery. On the Safety Simplifier also Push Buttons for start, stop and E-stop can be included.

Documents

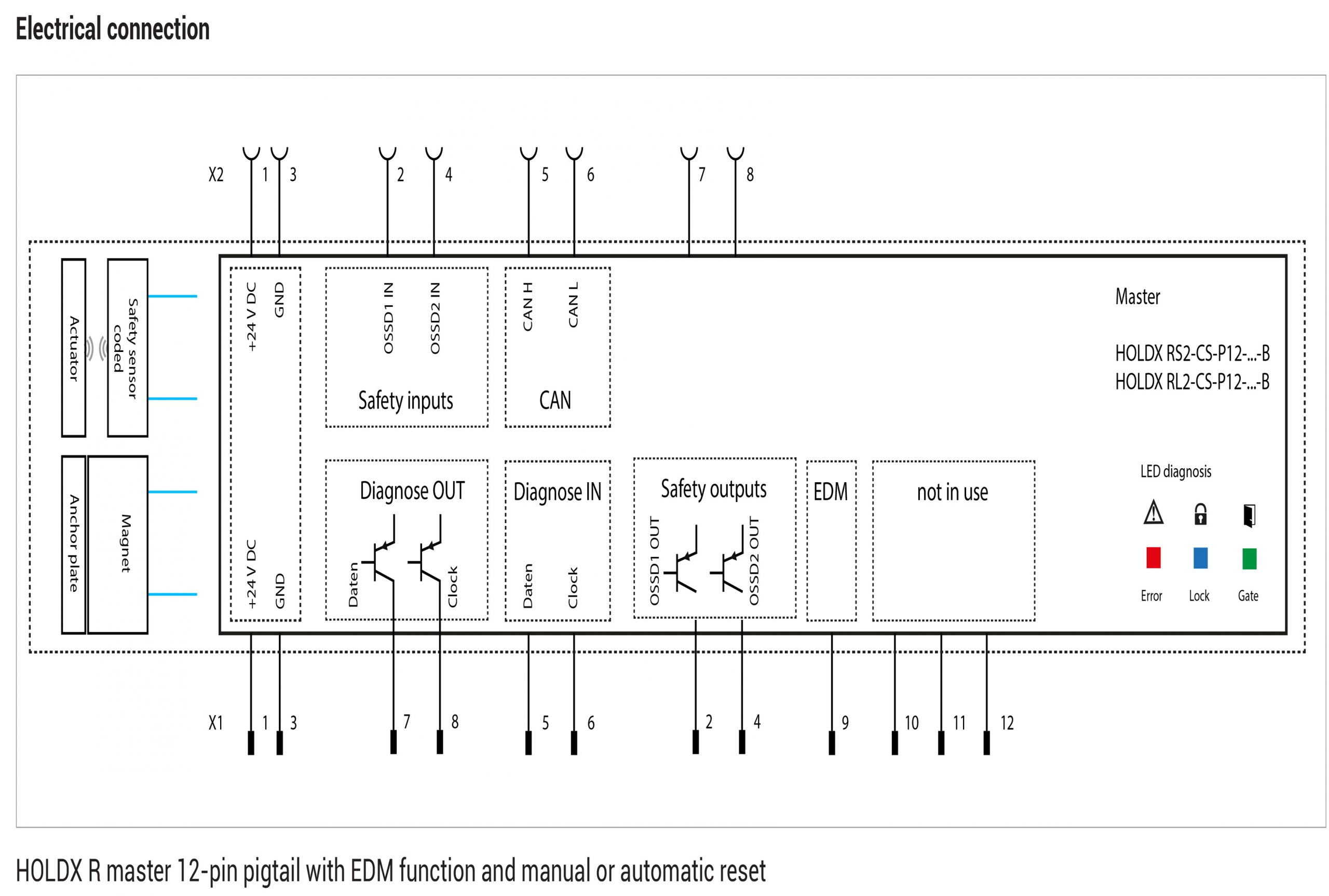

Electrical drawings

Technical Data

General data
Performance Level (EN ISO 13849-1: 2015)
PLe
Category (EN ISO 13849-1: 2015)
Cat.4
SIL (EN IEC 62061: 2005 + A2: 2015)
SIL CL3
SIL (IEC 61508: 2010)
SIL3
- Hardware fault tolerance
HFT1
- PFHd
2,24 x 10⁻⁹
Service life (EN IEC 62061)
20 Years
Switching current per safety output max.
100 mA (DC-12/DC-13)
Environmental conditions
Max. storage temperature
-20 °C...+70 °C
Max. operating temperature
-20 °C...+55 °C
Protection class
IP67
∆T max
0,5 °C/ min
Electrical data
Design / Connections
1x 2-channels
Supply voltage
24 VDC (+10/-15%)
No-load current I0
60 mA
Amount safety inputs
1x 2-channels
Rated current (on 24 VDC)
645 mA
Power consumption (incl. OSSD outputs
17 W
Current consumption per input max.
2,75 mA
Current consumption input magnet ON
1,2 mA
Amount OSSD safety output
1x 2-channels
Safety output - output type
Transistor (PNP)
Voltage drop safety output (Ud)
0,75 V
Residual current safety output (Ir)
0,5 mA
Load capacitive reactance safety output max.
20 nF
Amount diagnosis output
1
Diagnosis output- output type
Transistor (PNP)
Switching current per diagnosis output max.
100 mA
Connection type
(Version HOLDX RL1-8P) M12 8-pin, Pigtail 200 mm
Protection class power supply
III
Series connection for safe In- and Outputs
max. 30 process locks
Mechanical data
Dimensions
Width
34 mm
Length
(without cable) 240 mm
Height
31 mm
Locking force electromagnet
1200 N
Permanent resting force
50 N
Smart resting force
0/ 30 N/ 50 N
Weight process lock
725 g
Torque (mounting screw) process lock
6 Nm
Mounting
Screwing with raised head screw M6 Torx with pin
Material housing lock
PBT GF30, Aluminium eloxated black, AlMgSi, TPE, PC
Shock resistance
30 g / 11 ms
Vibration resistance
1 g, 5-150 Hz

Models

BasicHolding forceCodingAnchor plateConnectionHandle

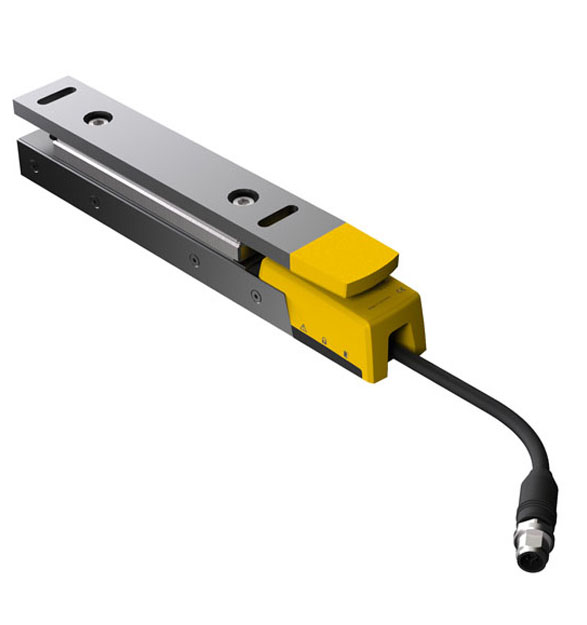

HOLDX RL1200 NStandardWith RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RL1200 NStandardWith RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
HOLDX RL1200 NUnicWith RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RL1200 NUnicWith RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
HOLDX RL1200 NUnic re-learnable*With RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RL1200 NUnic re-learnable*With RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NStandardWith RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NStandardWith RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NUnicWith RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NUnicWith RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NUnic re-learnable*With RFID tag (A1)Cable 195 mm with M12 -8 pin maleOption
HOLDX RS600 NUnic re-learnable*With RFID tag + 50 N deenerised (A2)Cable 195 mm with M12 -8 pin maleOption
*Sensor plate and anchore plate can only be ordered in pair (Sensor+RFID)
